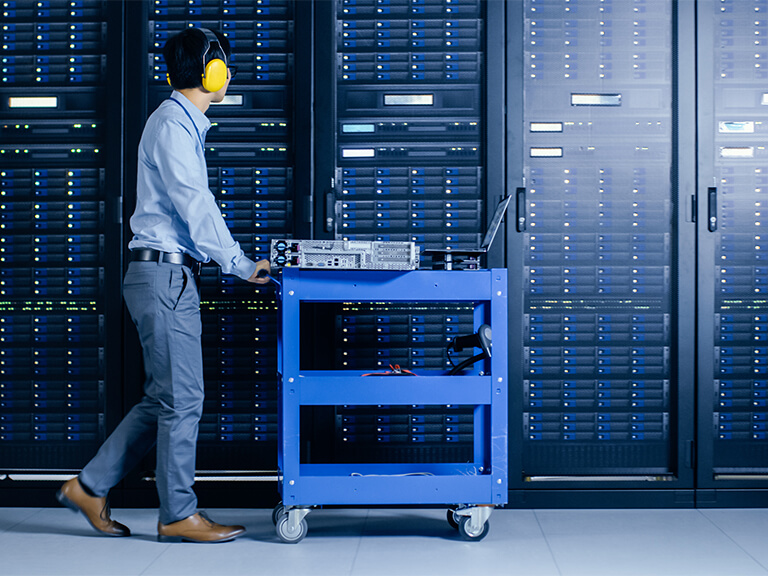

Electrical Testing Requirements for Data Centers
Every plant shutdown has a long to-do list, whether it is checking the pumps and compressors or recalibrating transmitters. Electrical teams, meanwhile, have to deal with equipment that usually runs nonstop. That access is valuable.
That’s what makes electrical testing non-negotiable.
Commissioning is just the starting point. What happens over the years after that, like how equipment ages, how load profiles shift, how systems hold up under real operating pressure — is where testing actually earns its place.
Why Electrical Testing Matters in Data Centers
Data centers run on layered power systems: utility supply, UPS systems, backup generators, power distribution units, and switchgear. Each layer is designed to take over if another fails. Whether it actually does depends entirely on whether that layer has been tested under the right conditions.
That’s the gap filled by testing:
- Hidden faults get caught before they surface on their own terms.
- Redundancy systems get confirmed rather than assumed.
- Performance gets validated against real load conditions, not just what the spec sheet says.
- And the facility stays aligned with standards, like IEEE, NFPA 70B, and TIA-942, not as a compliance formality but because those frameworks reflect what keeps facilities running.
Key Electrical Systems That Require Testing
A data center’s power architecture is interconnected, which means a weakness in one area doesn’t stay contained. Testing has to cover each critical component.
1. Uninterruptible Power Supply (UPS)
UPS systems bridge the gap between a power failure and generator startup. That window is small, but it’s where a lot can go wrong. Testing covers battery health and runtime capacity, how quickly the system transfers during a failure, and whether it handles peak load without faltering. Minor degradation here rarely announces itself. It just shows up at the worst possible moment.
2. Backup Generators
Generators are the last line of defense, and they have to start instantly and hold the load without fluctuation. Testing works through:
- Start-up reliability under cold and warm conditions
- Fuel system performance over sustained run time
- Load endurance under simulated demand
A generator that starts but can’t hold a load under pressure is barely better than one that doesn’t start at all.
3. Switchgear and Circuit Breakers
Switchgear controls and protects electrical flow across the entire facility. The questions testing answers here are straightforward but critical: does it interrupt faults fast enough, do the breakers coordinate properly, and will they hold up mechanically through repeated operations? Poor coordination between breakers is one of those problems that stays invisible until a fault actually happens.
4. Power Distribution Units (PDUs)
PDUs push power out to racks and servers. Testing checks load balance across circuits, voltage stability under varying demand, and whether overload protection kicks in correctly. An unbalanced PDU doesn’t fail dramatically. It degrades quietly and takes equipment with it.
5. Cabling and Busbars
Cabling carries power across the entire infrastructure, which makes it easy to overlook until something fails. Testing identifies:
- Insulation weaknesses before they become faults
- Thermal stress points that indicate overloading
- Sections at risk of failure under sustained current
Types of Electrical Testing in Data Centers
Different risks need different tests. The goal is to get as close to real-world conditions as possible, not just confirm that things work when nothing is under pressure.
- Routine testing is where the baseline gets established, which includes insulation resistance, continuity, and grounding. Everything else gets compared against this.
- Functional testing is less about the equipment itself and more about what it does when called upon. It ensures the backup systems activate as they are supposed to.
- Load testing is where systems are run under simulated operating conditions, and whatever was hiding at normal load tends to show up here.
- Acceptance testing happens before commissioning. It’s the last checkpoint before a system goes live, confirming that what was installed is actually what was specified.
- Predictive testing monitors trends that indicate future failures. When something starts drifting in the wrong direction, this catches it early enough to act on.
Load Bank Testing: What It Is and Why It Matters
Load bank testing gets its own section because it’s the one type of testing that genuinely replicates what a failure event demands of backup systems.
It works by applying a full, sustained artificial load to generators and UPS systems that mirrors actual operating conditions. What that reveals:
- Whether generators can handle a full load without becoming unstable.
- Wet stacking issues in diesel generators, which only show up under load.
- How cooling and exhaust systems behave when the system is genuinely working hard.
- Whether the whole setup holds together under the conditions it was built for.
A generator that looks fine on a routine check can still fail during an actual outage. Load bank testing is how you find that out before it matters.
Where Crest Test Systems Adds Value
As data centers scale, testing requirements grow more demanding. More systems, higher loads, tighter tolerances, and less margin for inconsistency.
Running separate instruments for breaker timing, coil current, insulation testing, and mechanical analysis creates the kind of coordination problems that slow everything down.
Crest Test Systems brings it all under one roof. A single integrated platform covering:
- Circuit breaker timing.
- Coil and motor current measurement.
- Mechanical movement analysis.
- HiPot insulation testing.
- Endurance and mechanical cycling.
- Generator testing.
Everything runs through one system. Results are consistent across test types without having to switch between instruments.
For data center operators and equipment manufacturers working through large volumes, testing moves faster, the data holds up under scrutiny, and maintenance decisions get made on a complete picture rather than whatever happened to be tested that day.
Conclusion
Data centers are built for continuity, but continuity doesn’t happen by accident. It gets engineered, tested, and validated continuously.
Electrical testing makes sure every layer of the power system performs when it matters most: during failures, transitions, and peak demand, not just during normal operation when nothing is under stress.
As infrastructure grows more complex, disconnected testing methods create gaps that eventually surface as incidents. Crest Test Systems addresses that directly, consolidating what used to require multiple instruments into a single, consistent testing environment.
FAQs:
The evaluation of power systems, including UPS units, generators, switchgear, and cabling, to confirm they’ll perform reliably when the facility needs them most. It covers both normal operating conditions and the fault scenarios that backup systems are specifically designed for.
High-priority components typically run on continuous monitoring, while full system testing is scheduled periodically based on asset criticality. The more an asset is relied upon during a failure event, the more frequently it should be tested.
Load bank testing applies a full artificial load to generators and UPS systems to simulate actual failure conditions. It’s the only way to confirm that backup systems will hold up under real demand, not just under routine checks.
It detects heat anomalies that conventional testing doesn’t catch, including loose connections, overloaded circuits, and imbalanced loads.
Manufacturing, healthcare, financial services, and telecommunications all operate on infrastructure where unplanned outages carry significant operational and financial consequences.
